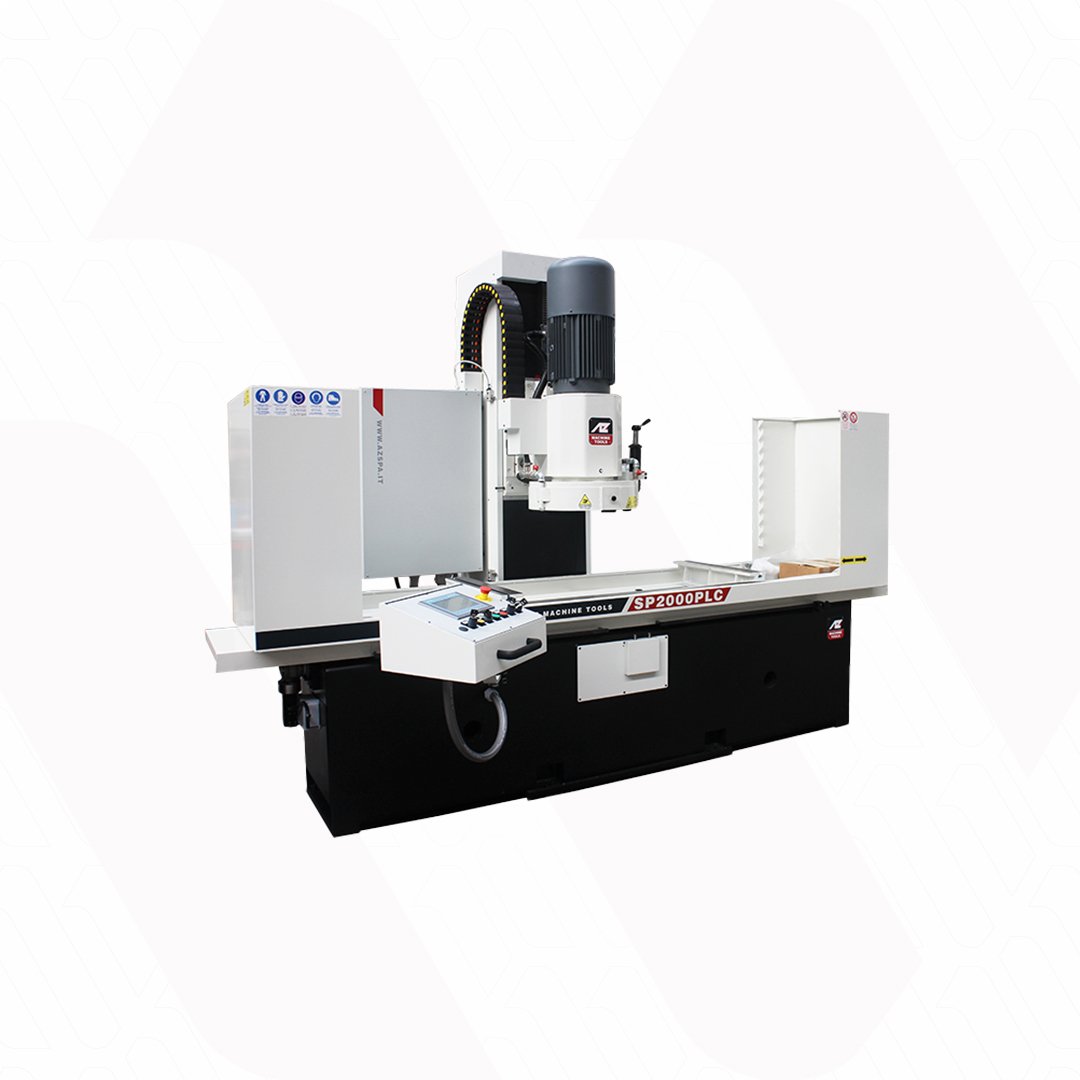

Automatic Surface Grinding & Milling Machines

KEY FEATURES:

Fully automatic grinding and milling.

Precision control for consistent results.

Sturdy construction for heavy-duty use.

High-speed operation for increased productivity.

Benefits:

Increases productivity with automatic operation.

Ensures precise and smooth surfaces.

Reduces operator workload.

SPECIFICATIONS:

Max automatic table traverse 2000mm.

Max grinding width 440mm.

Max milling width with cutting tool 440mm.

Useful table surface 1800x440mm.

Min and max height table to wheel 0-850mm.

Min and max height table to tool or milling cutter 0-850mm.

Distance from column to table C/L  395mm.

Segmental wheel diameter 450mm.

CBN milling head (optional) 450mm.

APPLICATIONS:

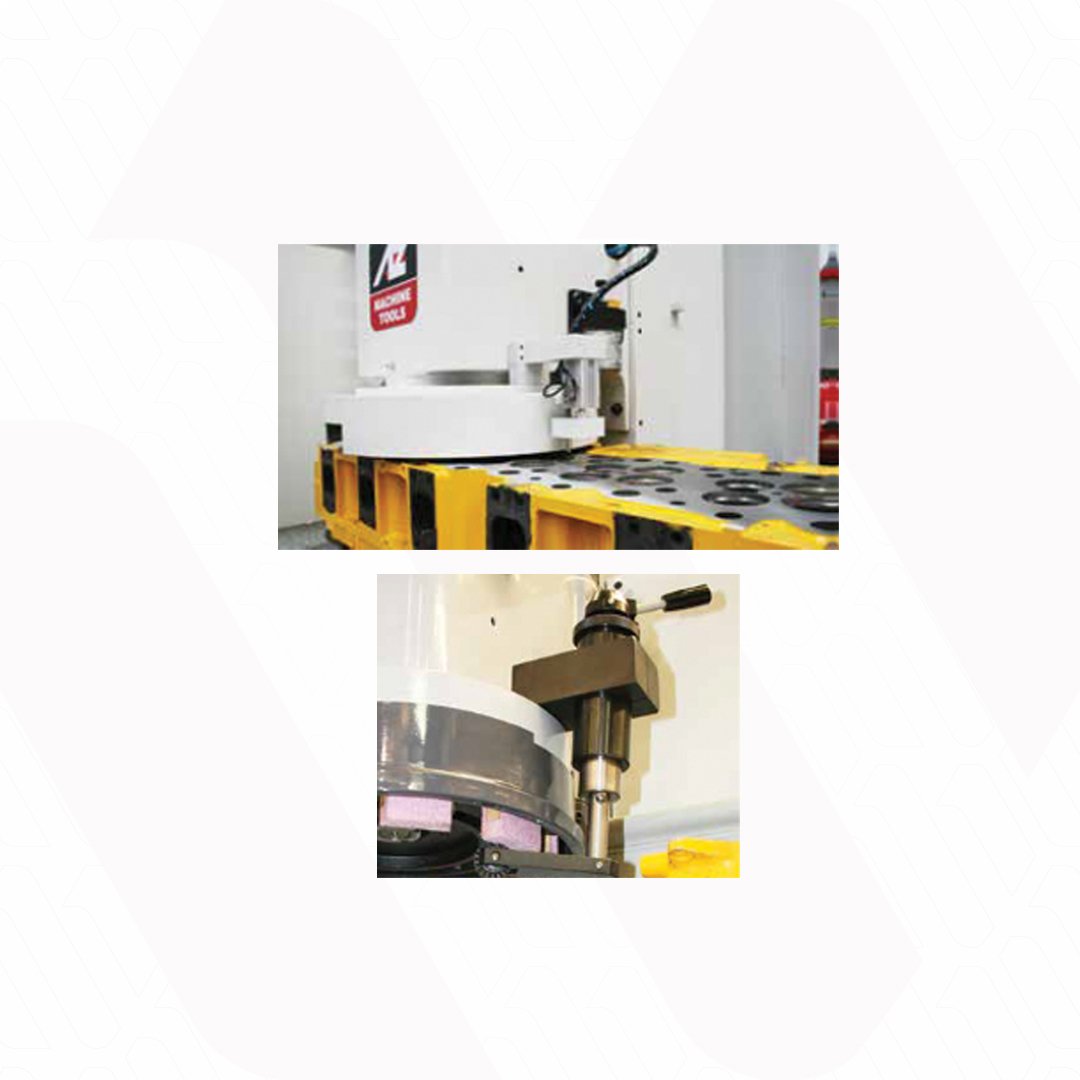

Surface grinding of engine parts.

Automotive repair shops.

Engine rebuilding.
