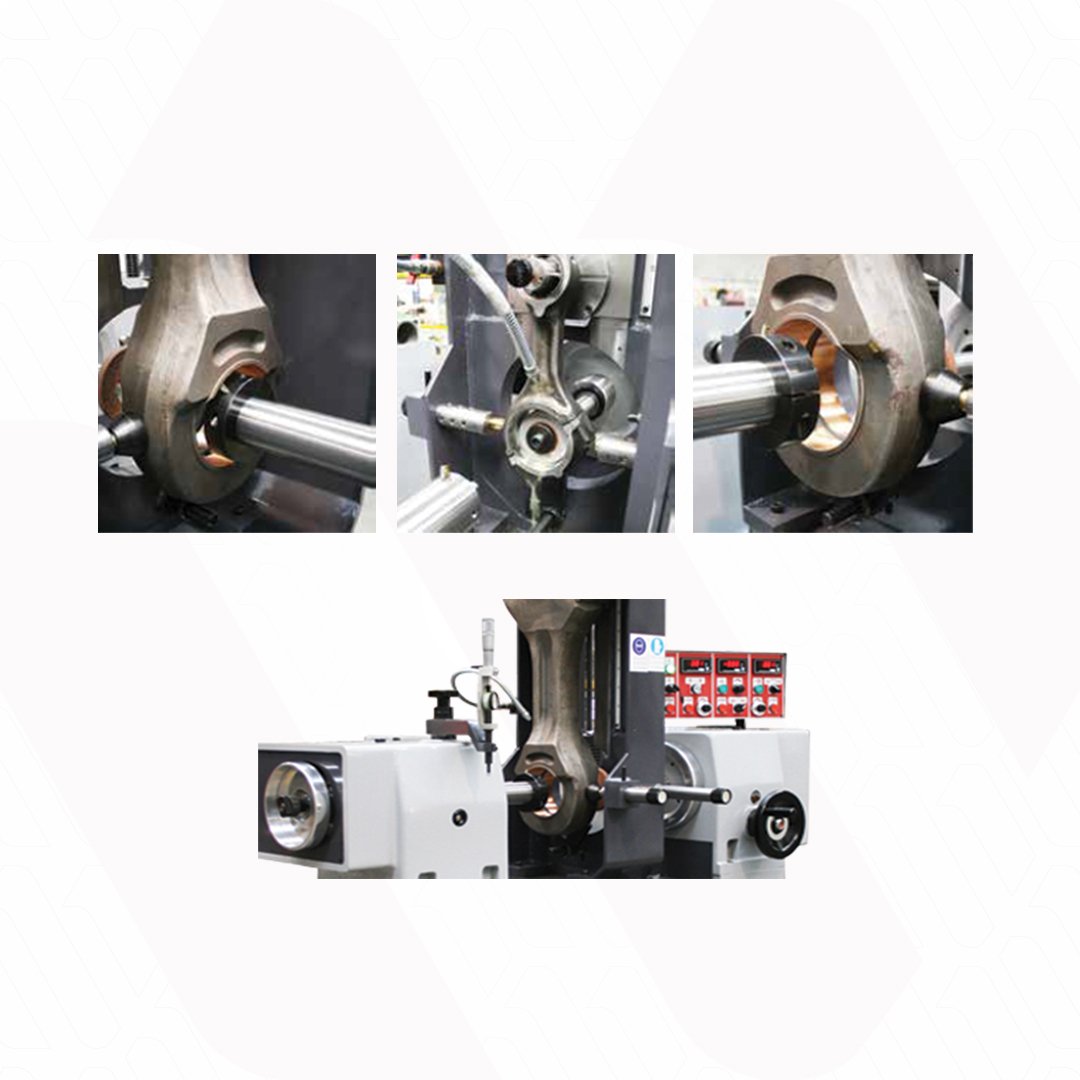

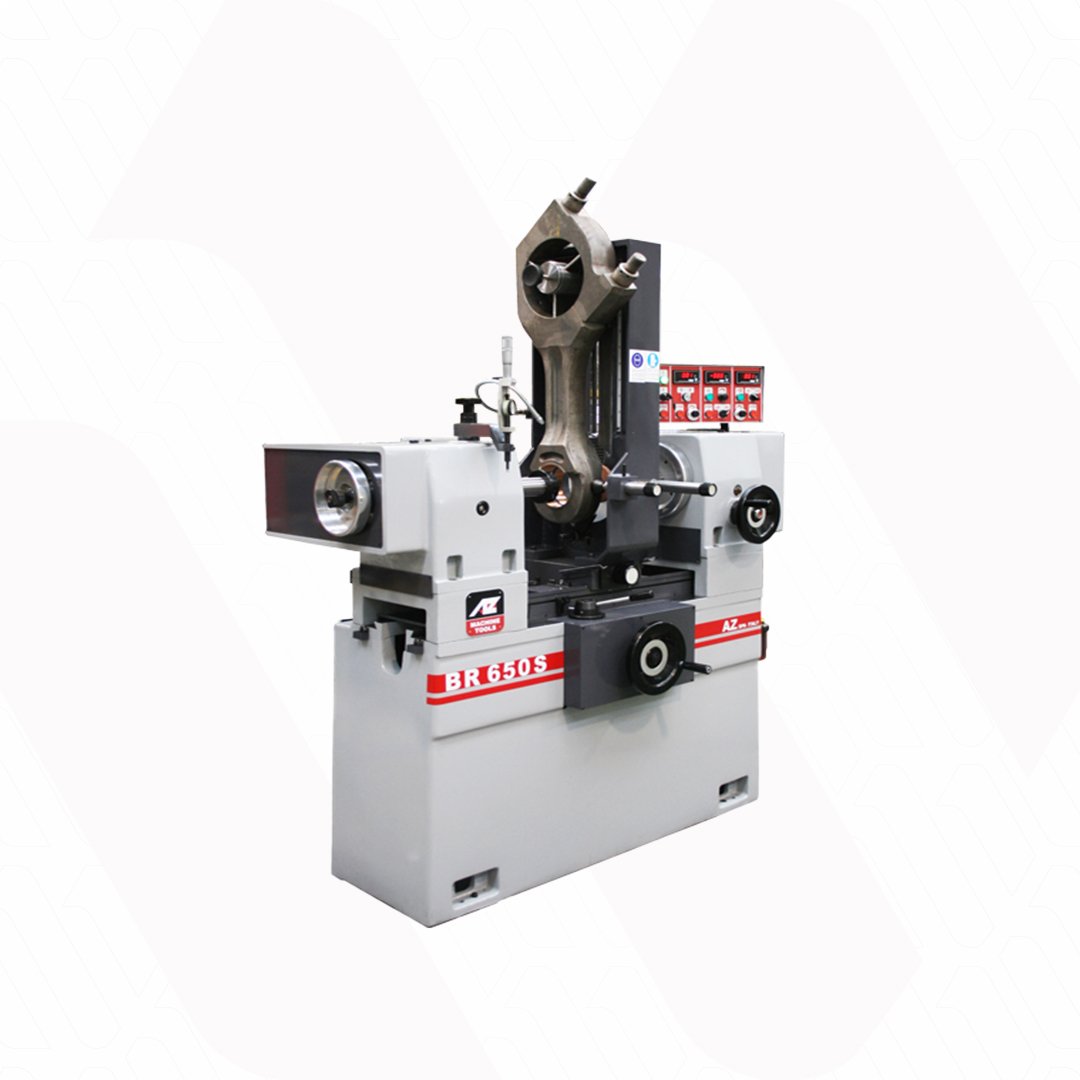

Con-Rod Boring Machines

KEY FEATURES:

Precision boring for connecting rods.

Heavy-duty design for durability.

Adjustable boring diameters for versatility.

Easy operation with user-friendly controls.

SPECIFICATIONS:

Boring capacity 15-250mm.

Grinding capacity 30-250mm.

Min.-Max. conrod center distance 160-1000mm.

Height of spindle C/L over table 380mm.

Boring spindle rotation speeds 0-1200RPM.

Grinding spindle rotation speeds 1500÷9500RPM.

Grinding spindle revolution speed 80-160RPM.

Radial grinding travel (max. eccentricity of wheel C/L) 12mm.

Max. table traverse 420mm.

Variable automatic table speed on both sides 0-165mm/min.

APPLICATIONS:

Con-rod reconditioning.

Engine repair shops.

Automotive workshops.
