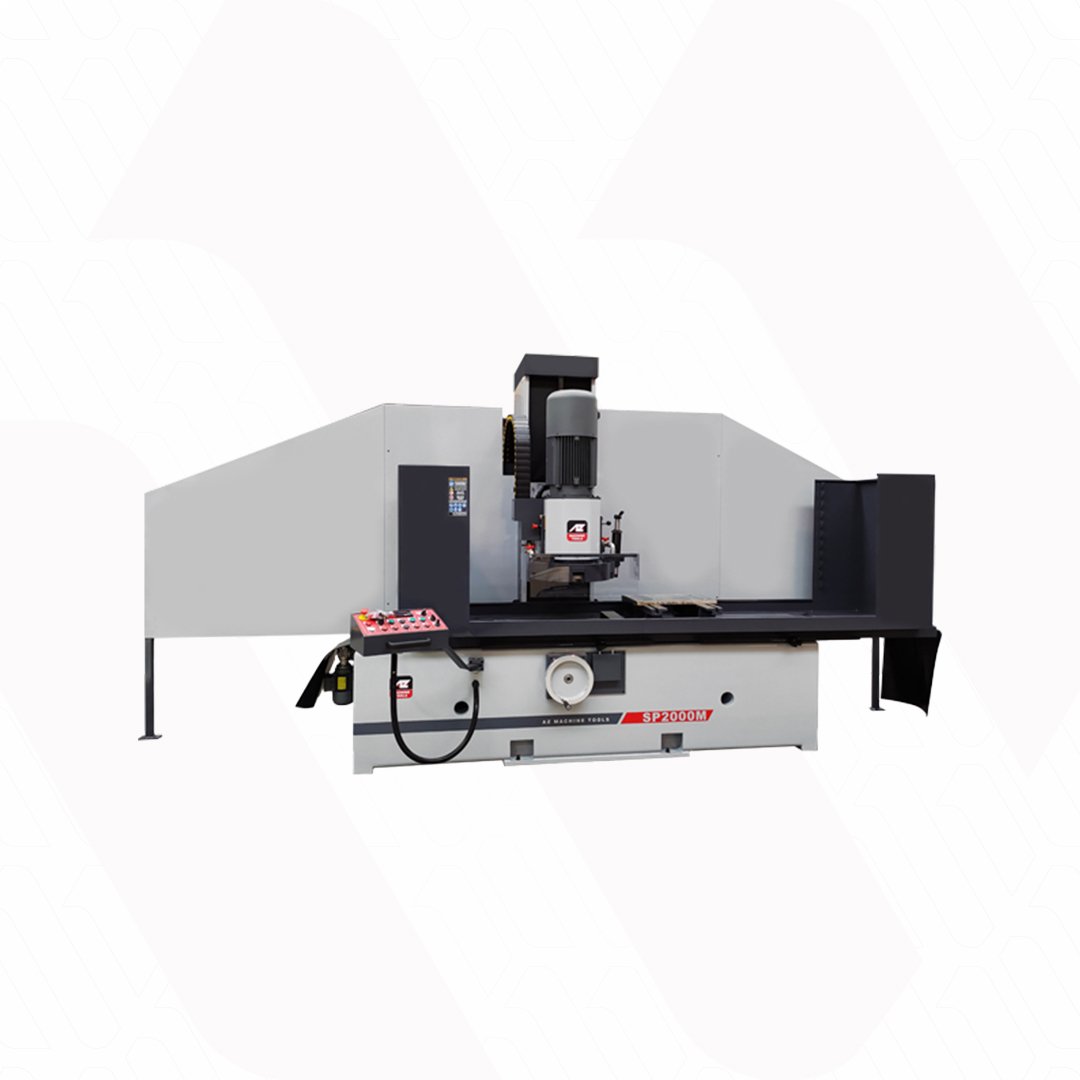

Conventional Surface Grinding & Milling Machines

KEY FEATURES:

Manual surface grinding and milling.

Durable and robust design.

Adjustable grinding and milling speeds.

High precision for smooth surface finishing.

Benefits:

Ideal for small to medium workshops.

Provides consistent and smooth surface finishing.

Easy to operate and maintain.

SPECIFICATIONS:

Max automatic table traverse 2000mm.

Max grinding width 440mm.

Max milling width with cutting tool 440mm.

Useful table surface 1800x440mm.

Min and max height table to wheel 0-850mm.

Min and max height table to tool or milling cutter 0-850mm.

Distance from column to table C/L  395mm.

Segmental wheel diameter 450mm.

CBN milling head (optional) 450mm.

APPLICATIONS:

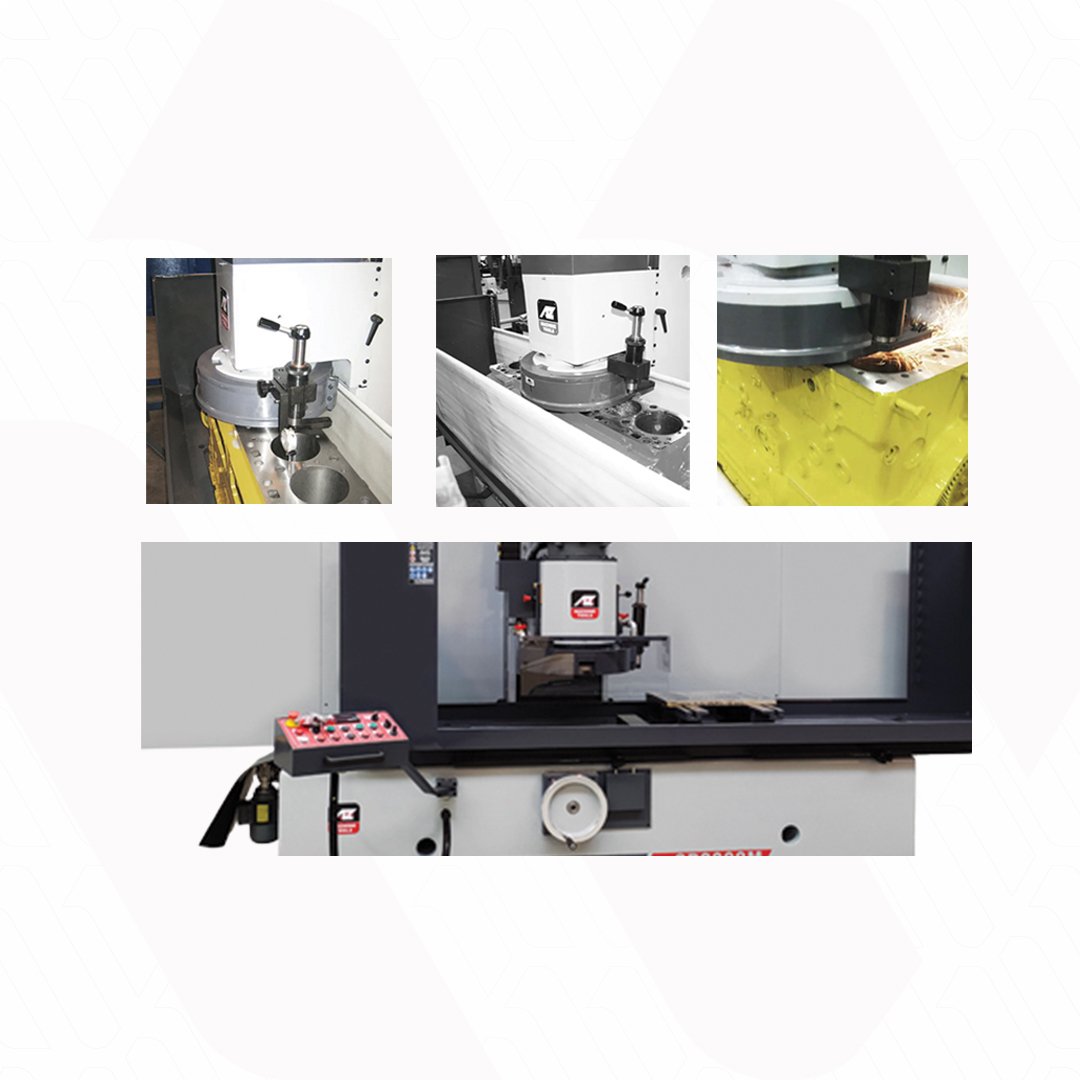

Surface grinding of engine parts.

Automotive workshops.

General engine reconditioning.
