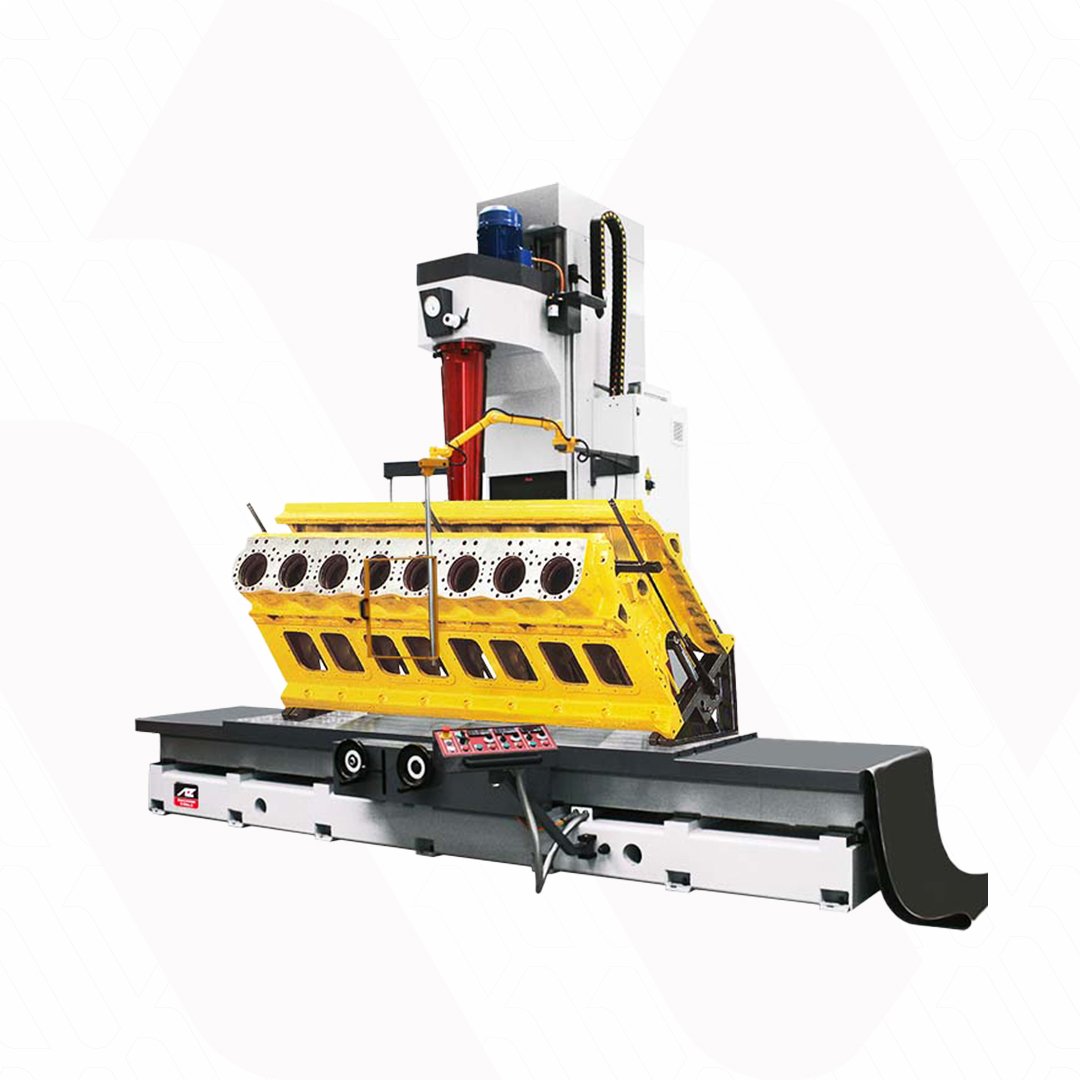

Cylinder Boring & Milling Machines

KEY FEATURES:

Manual operation with high precision.

Suitable for small to medium cylinder blocks.

Heavy-duty design for long-lasting use.

Adjustable boring and milling settings.

SPECIFICATIONS:

Boring range 30-500mm.

Max boring height 1450mm.

Max milling width 500mm.

Max milling length 2700mm.

Max vertical travel of the head 450mm.

Distance from spindle center to column 550mm.

Table surface 3000-850mm.

Max longitudinal travel of table 2900mm.

Max traverse travel of table 200mm.

Max distance between head and table  2160mm.

Spindle rotation 0-50mm/min Head movement 40-400 RPM.

Table movement 0-200mm/min.

APPLICATIONS:

Cylinder block reconditioning.

Automotive workshops.

Engine repair and maintenance.
