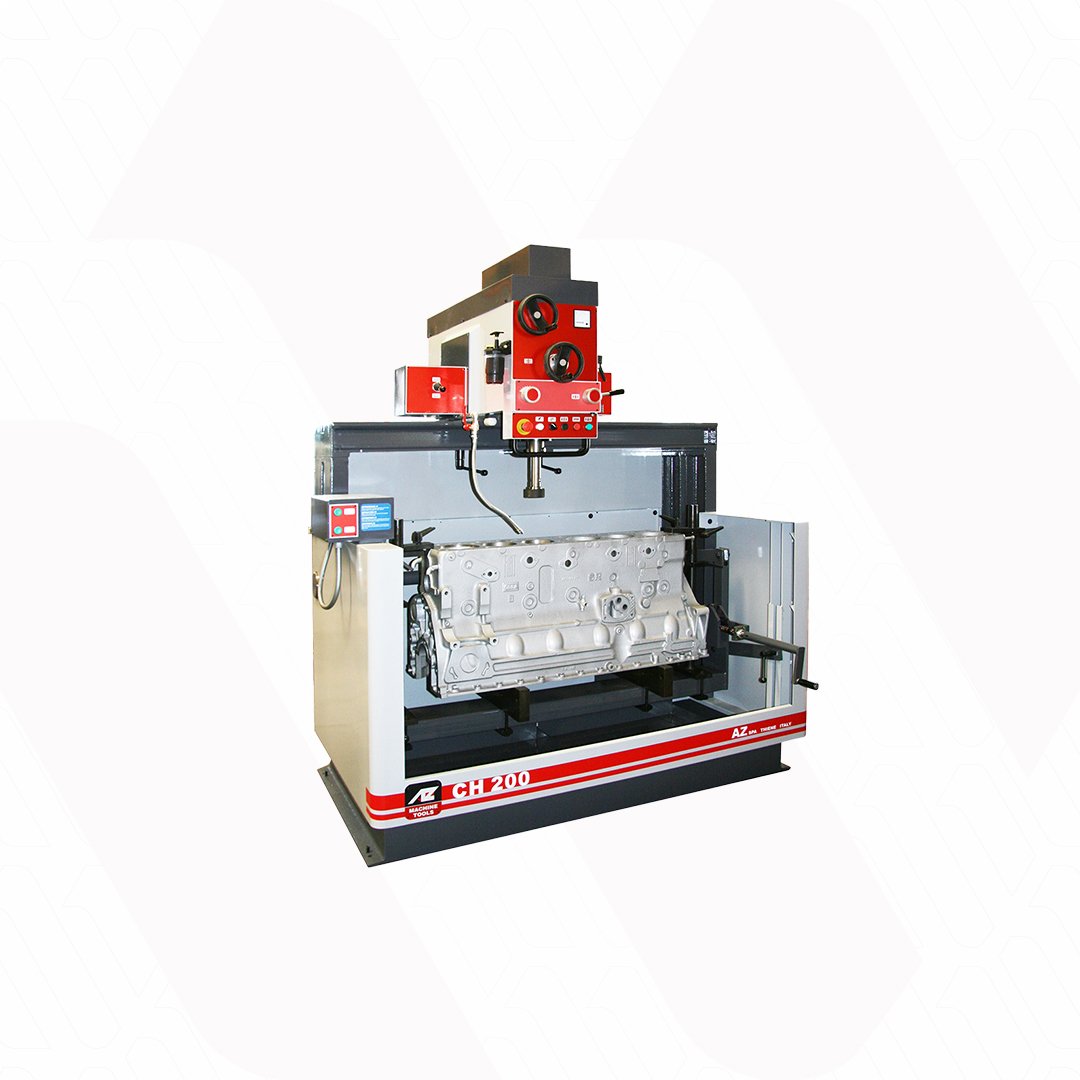

Cylinder Honing Machines

KEY FEATURES:

High-precision honing for cylinders.

Sturdy design for long-lasting use.

Adjustable honing speeds for different materials.

Easy to operate with user-friendly controls.

SPECIFICATIONS:

Honing capacity 25-300mm.

Max. honing depth  550mm.

Stroke of the honer 500mm.

Max. length admitted for the block 1600mm.

Max workpiece height 700mm.

Spindle rotation speed 90-300RPM.

Spindle reciprocating speed (steplessly variable) 0-20 mm/min.

Max table inclination  ±45°.

Max head longitudinal travel  1250mm.

Max head trasversal travel  105mm.

APPLICATIONS:

Cylinder reconditioning.

Automotive engine repair.

General honing applications.
