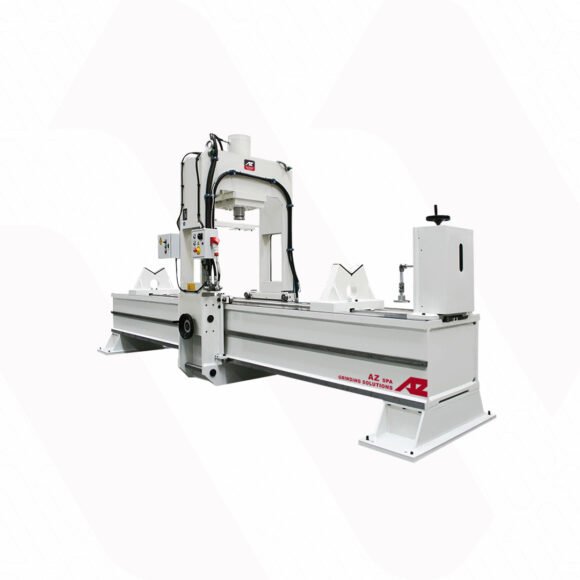

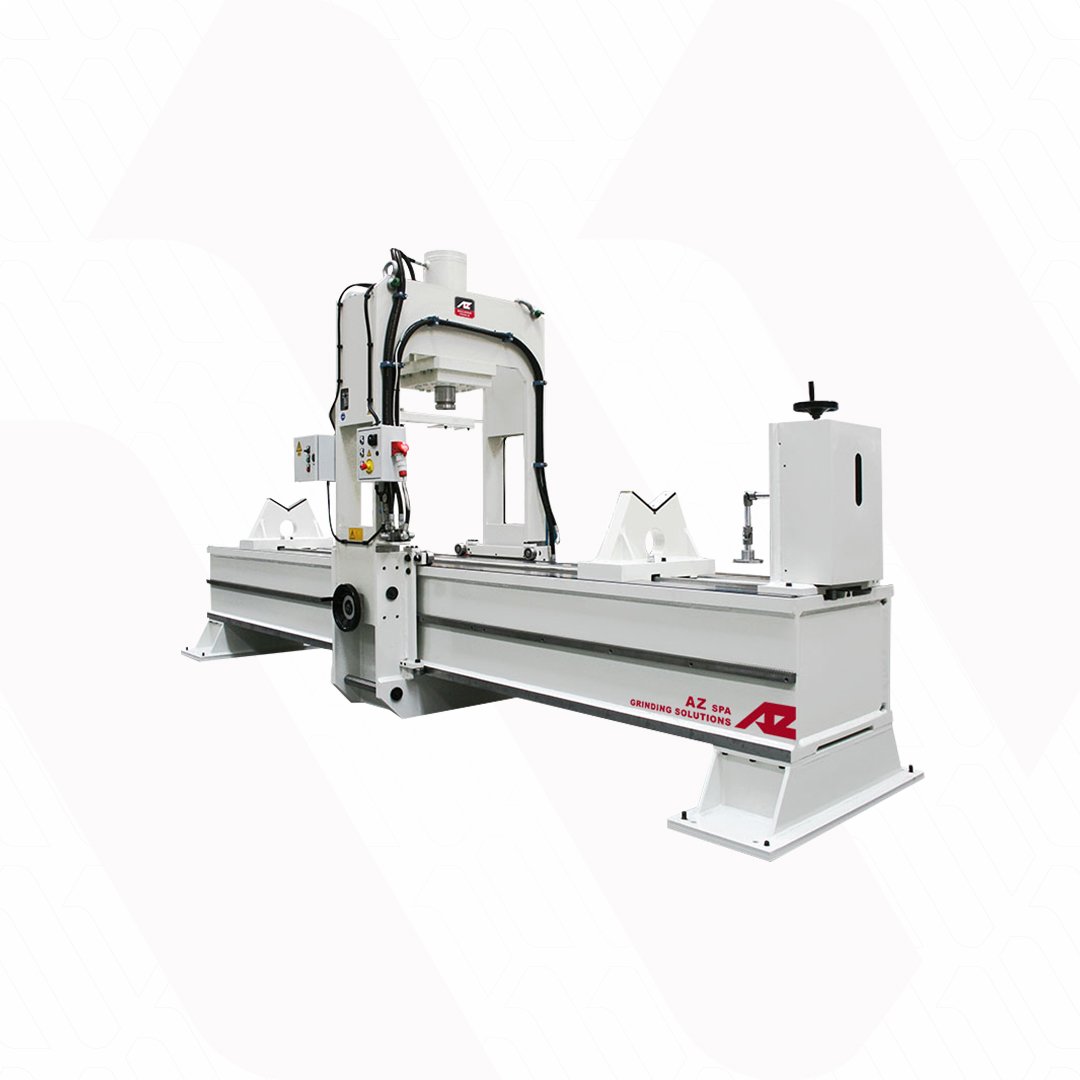

Straightening press

KEY FEATURES:

High-precision straightening for crankshafts and rods.

Heavy-duty construction for long-term use.

Adjustable pressure for different materials.

Easy to operate with digital controls.

Benefits:

Provides precise and accurate straightening.

Suitable for a wide range of components.

Reduces material waste with controlled pressure.

SPECIFICATIONS:

Machine lenght [mm] 6000.

Max distance between supports [mm] 5000.

Rotating mass max diameter [mm] 850.

Height shafts axis – bed (ø230) [mm] 500.

Collars max diameter [mm] 230.

Max cylinder thrust force [kg] 150000U.

APPLICATIONS:

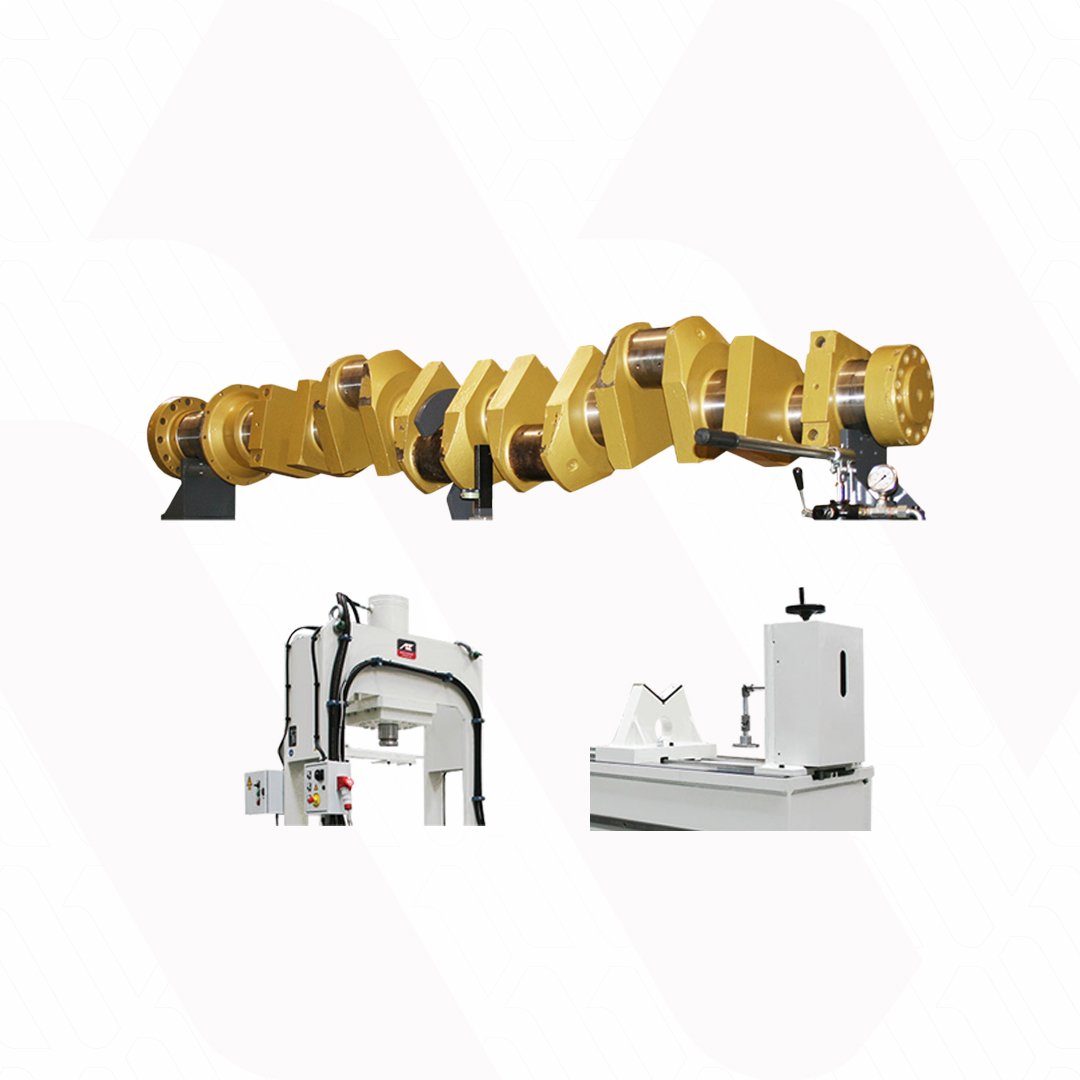

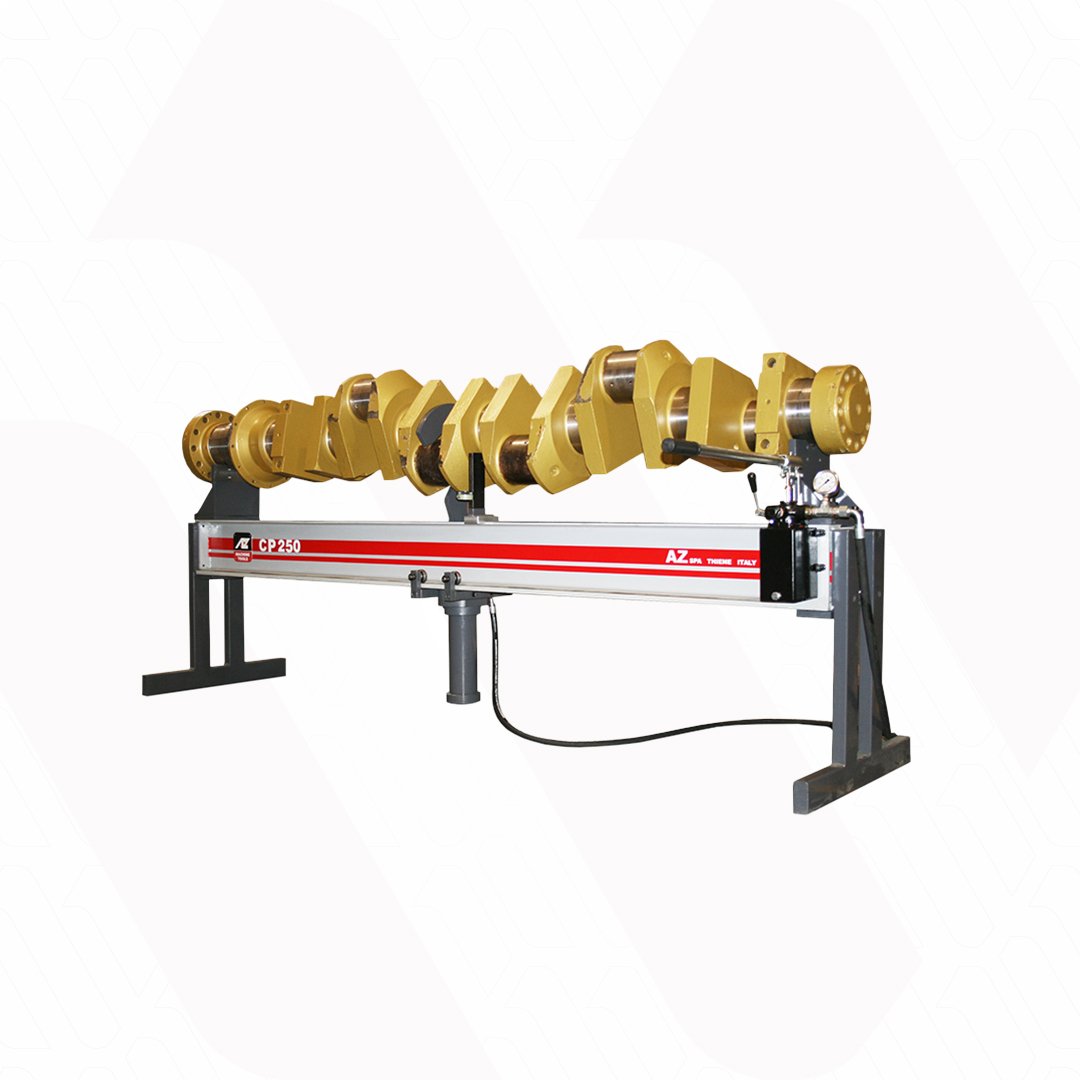

Crankshaft straightening.

Rod straightening.

Automotive workshops.
