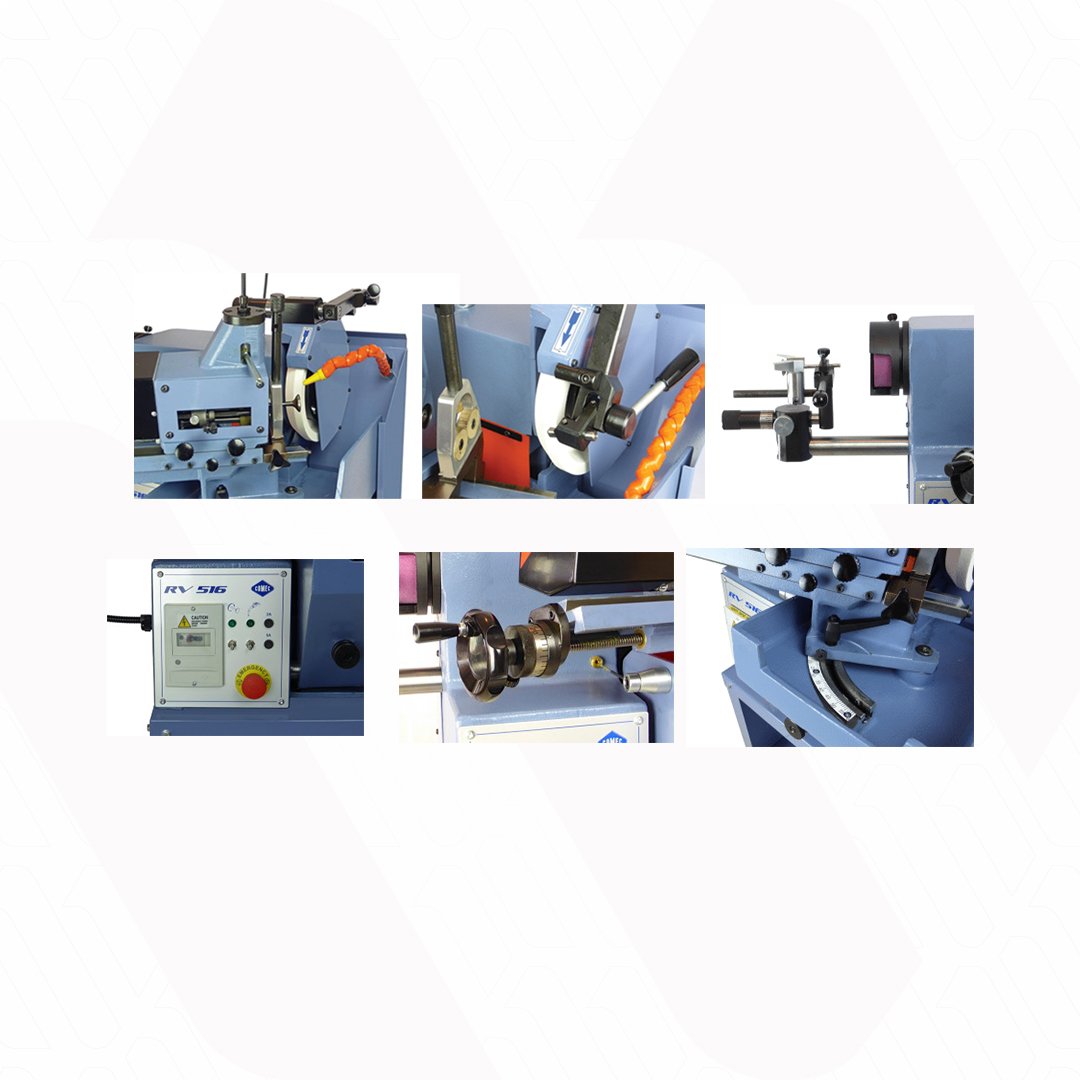

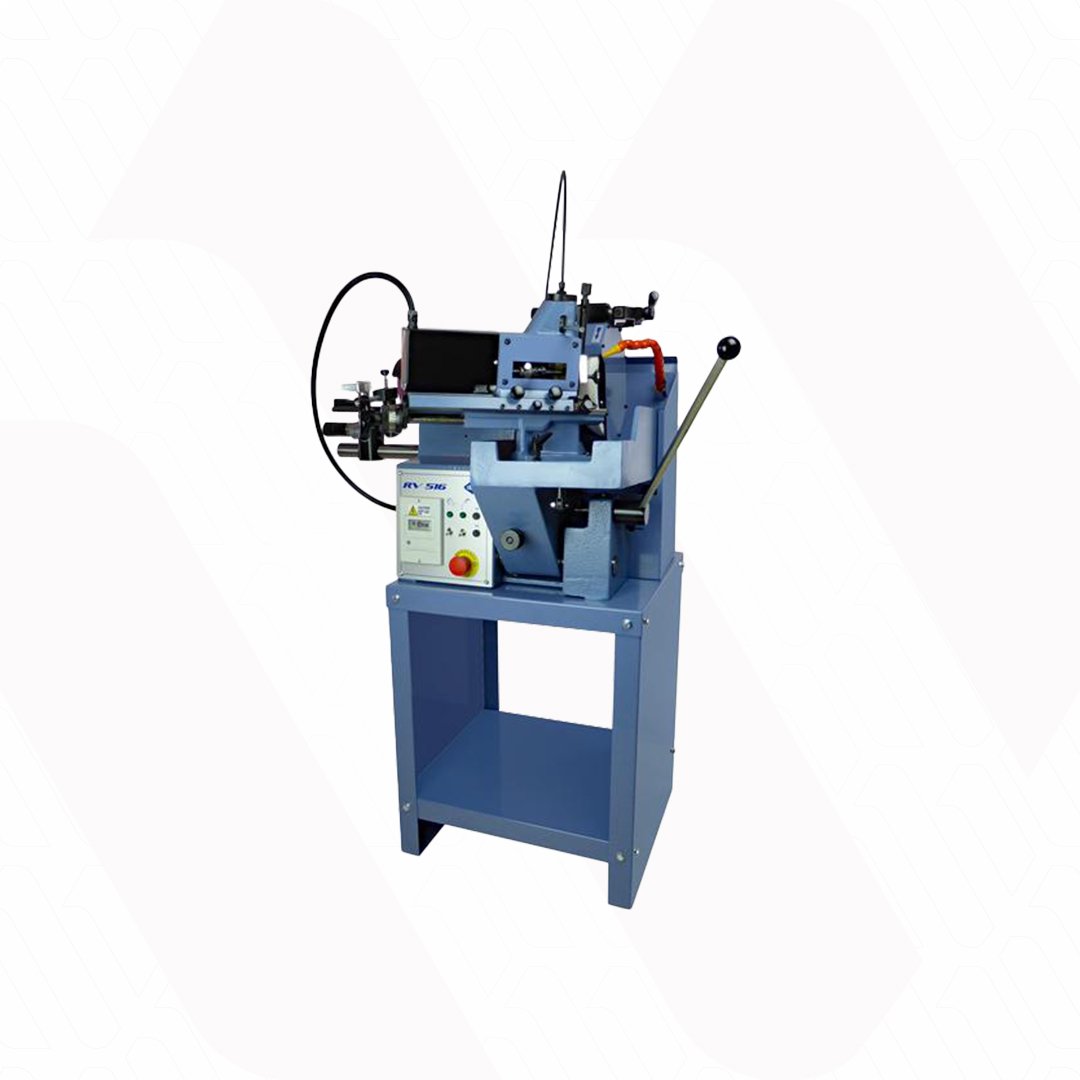

Valve Grinding Machine

KEY FEATURES:

Precision grinding for valve faces and stems.

Robust design for industrial use.

Adjustable speeds for different materials.

Easy-to-use controls for operator convenience.

SPECIFICATIONS:

Valve stem diameter 4÷16 mm.

Valve stem length 55÷330 mm.

Valve head diameter 114 mm.

Face angles 0°÷60°.

Grinding wheel speed 2800 rpm.

Main abrasive grinding wheel diameter 215 mm.

Butt abrasive grinding wheel diameter (ASM516) 100 mm.

Dimensions (LxWxH) 700x600x700 mm.

Weight 142 Kg.

APPLICATIONS:

Valve reconditioning.

Automotive workshops.

Engine maintenance and repair.
